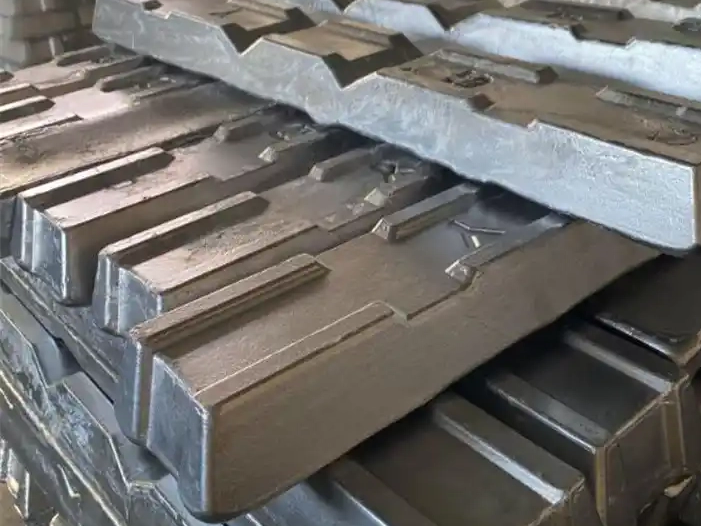

A356 (an American AA standard grade, corresponding to the Chinese grade ZL114A) is a sub-eutectic silicon aluminum alloy belonging to the Al-Si-Mg series. It has become one of the most classic casting aluminum alloys due to its excellent casting performance, good mechanical properties and corrosion resistance.
1. Chemical Composition
The chemical composition of A356 forms the basis of its performance. Its main feature is that it is strengthened by adding silicon (Si) and magnesium (Mg) and through T6 heat treatment (solution treatment + artificial aging).
Element | % Weight | Function and Effect |
Si | 6.5-7.5 | Main elements. Enhance the fluidity of the alloy, reduce the shrinkage rate, and significantly improve the casting performance. At the same time, enhance the strength and hardness of the alloy. |
Mg | 0.25-0.45 | Key strengthening elements. Key elements strengthened through heat treatment (T6 state). Magnesium and silicon form the Mg₂Si strengthening phase. Through solution treatment and aging treatment, the strength of the material is greatly enhanced. |
Fe | ≤ 0.20 | Impurity elements. It will form hard and brittle needle-like iron-rich phases, seriously reducing the ductility and fatigue performance of the alloy. The content needs to be strictly controlled. |
Mn | ≤ 0.10 | Sometimes a small amount of manganese (Mn) is added to neutralize the harmful effects of iron, transforming the needle-like iron-rich phase into a character-like or bone-like structure and improving toughness. |
Cu | ≤ 0.20 | Impurity elements. A small amount may reduce corrosion resistance, but sometimes it is deliberately added to enhance high-temperature strength. |
Zn | ≤ 0.10 | Impurity elements. |
Ti | ≤ 0.20 | As a grain refiner, it refines the as-cast structure and enhances mechanical properties. |
Others | ≤ 0.05 each | Strictly controlling the impurity content is the key to ensuring the stability of material performance. |
Al | Balance | Basic element. |
2. Mechanical Properties
The performance of A356 is highly dependent on its heat treatment state. Its as-cast performance is average, but after T6 heat treatment, its performance has been greatly improved.
Typical mechanical properties (after T6 heat treatment) :
Property | Value Range | Notes |
Tensile Strength | 230 - 310 MPa | The strength mainly depends on the Mg content and the heat treatment process. |
Yield Strength | 185 - 240 MPa | It has a relatively good resistance to yield. |
Elongation | 3.5 - 10 % | It reflects the toughness of the material. The higher the purity (especially the lower the Fe content), the better the elongation. |
Brinell Hardness | 75 - 105 HB | |
Elastic Modulus | 72 GPa |
T6 Heat Treatment:
(1) Solution Treatment：Usually, it is held at 535°C - 545°C for several hours (e.g., 4-12 hours) to allow the strengthening phases such as Mg₂Si to fully dissolve into the aluminum matrix, and then rapidly quenched in water to form a supersaturated solid solution.
(2) Artificial Aging：Generally, it is held at 155°C - 165°C for several hours (e.g., 2-6 hours) to allow the strengthening phase (Mg₂Si) in the supersaturated solid solution to precipitate uniformly in the form of extremely fine particles, resulting in a significant strengthening effect (precipitation strengthening).
3. Characteristics
Advantages
(1) Excellent casting performance: The high silicon content makes it have very good fluidity, low shrinkage rate, and a small tendency to hot cracking, making it easy to cast complex thin-walled parts.
(2) Excellent mechanical properties: Especially after T6 heat treatment, it has a high specific strength (strength/density).
(3) Excellent corrosion resistance: It belongs to the series with relatively good corrosion resistance among all aluminum alloys.
(4) Good welding and brazing performance.
(5) Easy machinability: Although slightly inferior to low-silicon aluminum alloys, its processing performance remains good.
Disadvantage
(1) Its ductility and toughness are relatively low.
(2) Its performance is greatly influenced by the casting process and quality: Defects such as porosity, shrinkage porosity, and impurity content can significantly reduce its final performance.

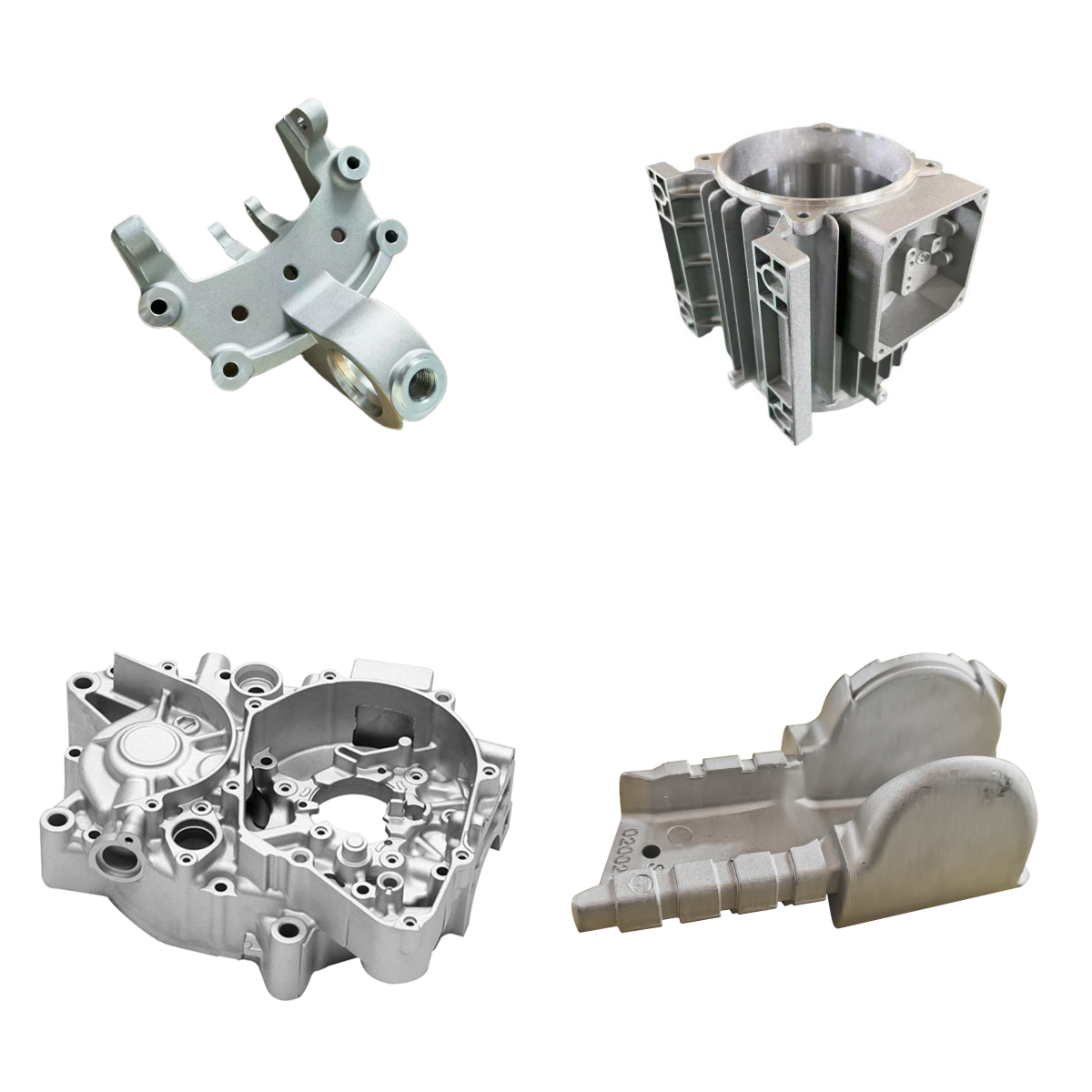

4. Application Fields
Due to its outstanding comprehensive performance, A356 is widely used in fields with high requirements for strength, lightweight and reliability.
Application fields | Examples of specific parts | Reason |
Automobile industry (Maximum) | wheels (aluminum alloy wheels), engine components (cylinder blocks, cylinder heads, pistons), transmission cases, steering knuckles, suspension system parts | Lightweight (reducing fuel consumption), good strength and toughness combination, and excellent casting performance |
Aerospace | aircraft cabin components, engine accessories, spacecraft structural parts | High specific strength and good reliability |
Military industry | armored vehicle components, radar housings, missile parts | It has superior comprehensive performance and meets strict requirements |
General machinery | pump casing/impeller, valve body, compressor casing, engine bracket | Good mechanical properties and capable of casting complex shapes |
Sports equipment | bicycle frames (high-end), racing car parts, mountain climbing equipment fasteners | Lightweight and high strength |
5. Conclusion
A356 is a high-performance casting aluminum alloy. Through the composition formula design of "high silicon to improve castability, low magnesium to achieve heat-treatable strengthening, and low iron to ensure high toughness", supplemented by T6 heat treatment, it perfectly balances excellent casting performance, good mechanical properties and corrosion resistance. It is currently one of the preferred materials for complex thin-walled, high-quality aluminum castings, especially for automotive wheels and key components.
