Quality Control

Home » Quality Control

Material

Die Casting

We provide customized processing services for different materials according to the needs of different customers. We strictly control the purchase of raw materials, and each batch of raw materials is equipped with a detailed test report. At the same time, we also have our own spectrometer to perform spectral analysis on incoming materials to ensure that the raw materials meet customer requirements.

The common raw materials we can cast are:
Aluminum alloy: ADC12, ZL101, A356, A380, A413, LM2, LM25, etc.
Zinc alloy: ZAMAK 3, ZAMAK 5, etc.

Of course, if you need to process other materials, you can provide the material grade or chemical composition table, and we can meet your requirements.

Material Grades Table

Material	Equivalent grades table of China and other main countries
Material	China	International Standards	USA	Japan	Germany	UK	France	Russia
Cast aluminum alloy	ZL101	AlSi7Mg	A356.0	AC4C	EN AC-42100	LM25	A-S7G	АЛ9
	ZL102	AlSi12	A413	AC3A	EN AC-44200	LM6	A-S13	AЛ9-2
	ZL103	AlSi7-9	A356.0	≈AC4C	EN AC-51300 / AlSi5Mg	EN AC-51300 / AlSi5Mg	EN AC-51300 / AlSi5Mg	AЛ4
	ZL104	EN AC-AlSi9Mg	A360.0	AC4B	EN AC-44300	LM9	A-S9G	АК9
	ADC12	EN AC-46000	A383	ADC12	EN-AC-460	EN AC-46000	EN AC-46000	АК12
Cast zinc alloy	ZL0410	ZnAl4Cu1	Zamak 3	ZDC1	Z410	ZL3	ZnAl4Cu1	ЦАМ4-1
Cast zinc alloy	ZL0401	ZnAl4Cu3	Zamak 5	ZDC2	Z430	ZL5	ZnAl4Cu3	ЦАМ4-3
Aluminum alloys for forging and CNC machining	1050	Al99.5	1050	A1050	Al99.5	1050A	A5	AD1
	1100	Al99.0	1100	A1100	Al99.0	1100	A6	A0
	2024	AlCu4Mg1	2024	A2024	AlCuMg2	L72	AU4G	D16
	2017	AlCu4MgSi	2017	A2017	AlCuMg1	L65	AU4	D1
	5052	AlMg2.5	5052	A5052	AlMg2.5	NS4	AG5	AMг5
	5083	AlMg4.5Mn	5083	A5083	AlMg4.5Mn	5083	AG4MC	AMг6
	6061	AlMgSi1	6061	A6061	AlMgSi1	HE20	AGS	AD31
	6063	AlMgSi0.5	6063	A6063	AlMgSi0.5	HE30	AGS	AD33
	7075	AlZn5.5MgCu	7075	A7075	AlZnMgCu1.5	HE77	AUZ5GU	B95
	7005	AlZn4.5Mg1	7005	A7005	AlZn4.5Mg1	HE30TF	AUZ4G	1915T

$mold design with customers\' part drawings$

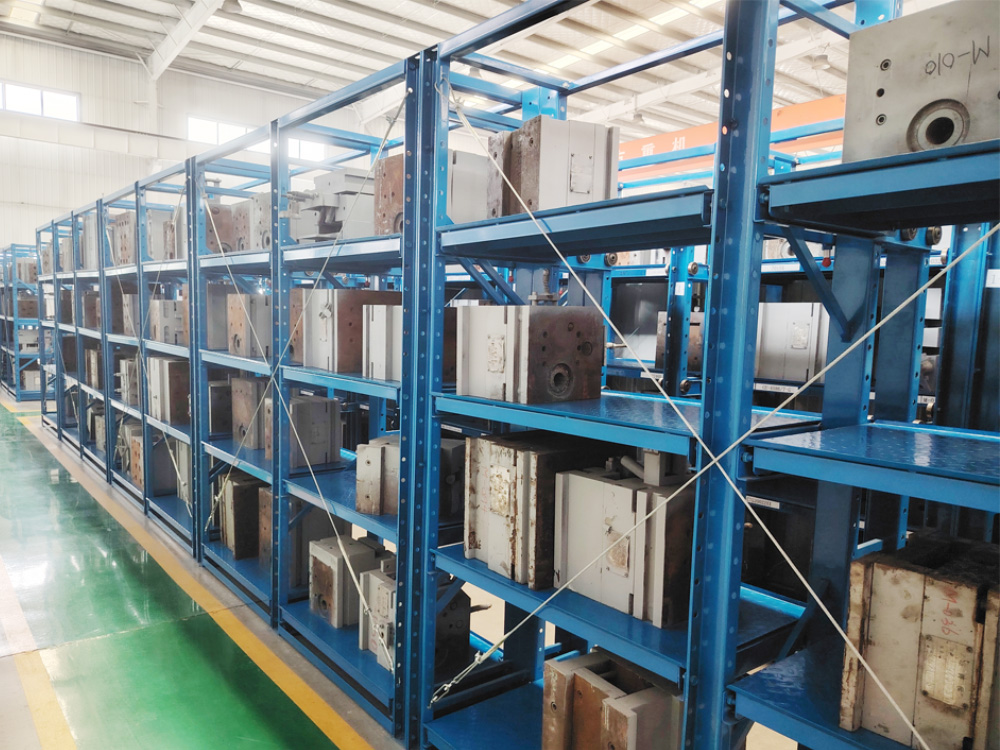

Mould Control

Die Casting

Our mold engineers design the mold according to the customers' part drawings and 3D drawings, including the position of the mold core separation, the position of the pouring and riser, the design of the slider position (if necessary), etc., and finally design the most reasonable mold.

At the same time, for parts with high requirements for the surface roughness of the parts, we will also perform fine processing on the mold cavity when making the mold, with an accuracy of up to ±0.01mm. After the mold is made, we also test the mold and adjust the mold according to the cast parts until it meets the requirements for casting qualified parts.

Size Testing

Die Casting

After the parts are processed, we will perform dimensional inspection according to the dimensional tolerance requirements of different parts to ensure that the dimensions are 100% qualified.
Our usual inspection equipment includes: calipers, micrometers, micrometers, gauges (go/no-go gauges, thread gauges), Two-dimensional scanner，three-coordinate measuring machine（CMM）, etc.

Internal Flaw Detection

Die Casting

Because some special parts have strict requirements on air tightness and internal structure, we will perform X-ray inspection and helium leak detection on such parts. We have our own X-ray inspection machine and helium leak detection machine.

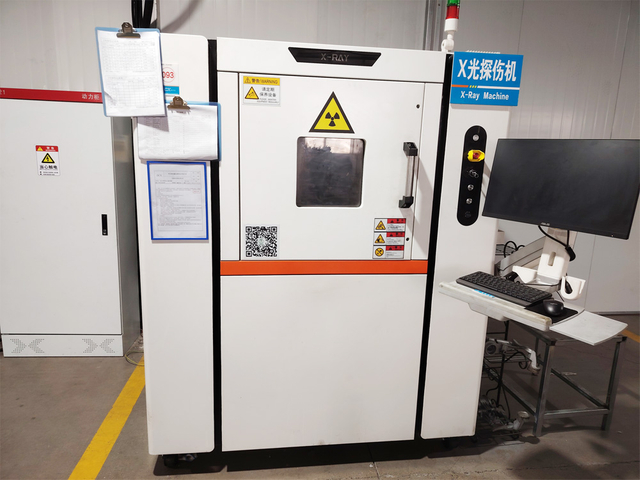

X-ray Flaw Detector
Helium Leak Detector

Mechanical Properties Testing

Die Casting

Before casting parts, we will cast test bars from each batch of molten metal to test its tensile strength, hardness and other mechanical parameters to ensure that the mechanical properties meet the requirements. We have tensile testing machines, hardness testers and other testing equipment.

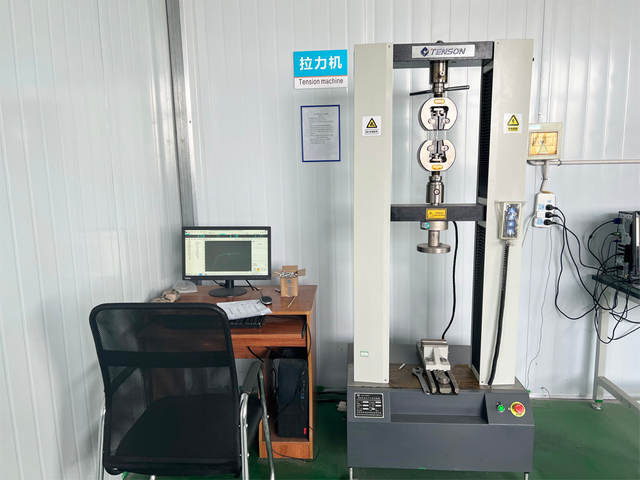

Tensile Testing Machine

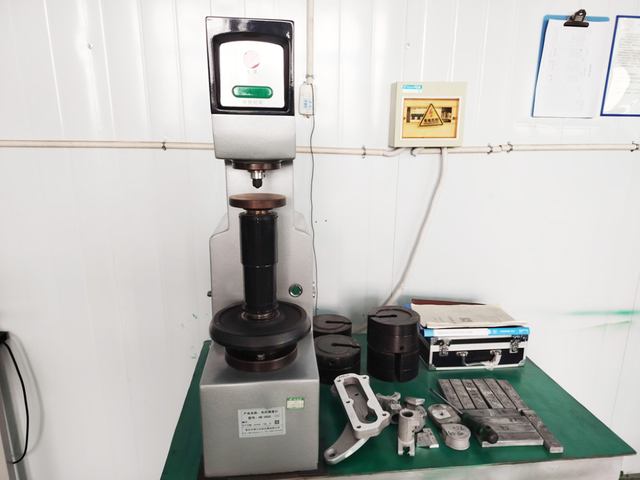

Hardness Tester

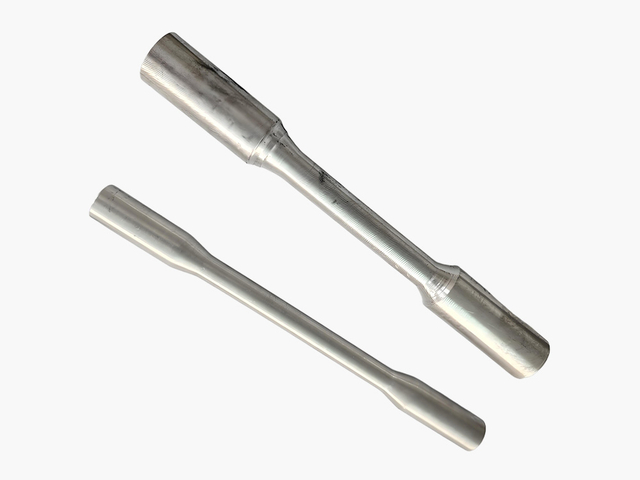

Test Bar

Packaging and shipping

Die Casting

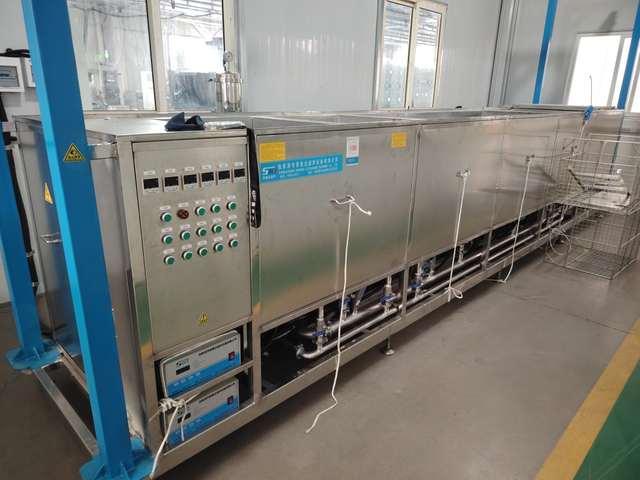

We are equipped with an ultrasonic cleaning machine to remove oil stains from the surface of parts.

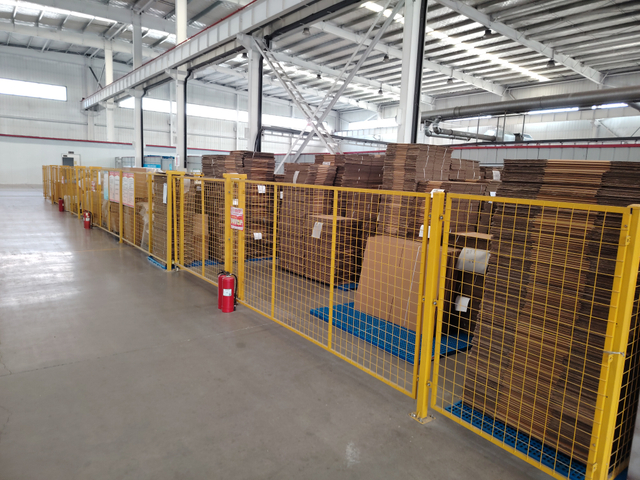

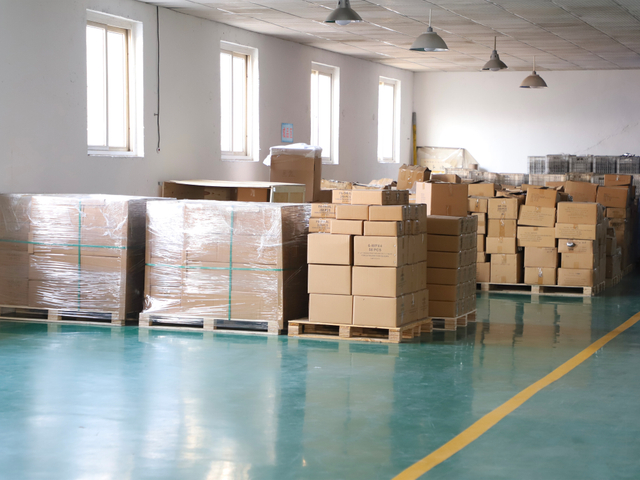

Our clean and independent packaging area ensures that parts are not dented or bumped during the packaging process. The packaging can be customized.
Our professional international transportation services ensure that goods are delivered safely to customers.
