Helium Leakage Detector for The Inspection of Die-casting Parts

A helium leakage detector (commonly referred to as a helium mass spectrometry leak detector) is a precision instrument that uses helium as the tracer gas to detect whether there are tiny leakage points inside die-castings and their leakage rates. By detecting extremely trace amounts of helium, it can identify minute defects that traditional water inspection and pressure drop methods cannot detect, making it the "gold standard" for ensuring the airtightness of die-castings.

I. Why Do Die Castings Require High-Precision Leak Testing?

Defects occurring during the die-casting manufacturing process can lead to leaks:

• Shrinkage Porosity/Cavities:Small voids formed inside the casting due to insufficient feeding during solidification and cooling.

• Cold Flaps:Seams formed when two metal streams meet but fail to fuse completely.

• Blowholes:Bubbles formed within the casting caused by entrapped air from the mold or gases released from coatings.

• Microcracks:Tiny cracks difficult to detect with the naked eye, caused by ejection or stress.

In industries such as automotive (e.g., engine blocks, transmission housings), aerospace, refrigeration (e.g., compressor housings), and telecommunications (e.g., base station heat sinks), these defects can lead to fluid or gas leakage, severely impacting product performance, safety, and lifespan

II. Working Principle of the Helium Mass Spectrometer Leak Detector

1.Tracer Gas: Helium is used because:

• Small molecular weight(4 g/mol) and low viscosity allow it to pass quickly through tiny leaks.

• Chemically inert,making it safe, non-flammable, and non-toxic.

• Very low concentration in air(about 5 ppm),resulting in low background signal and extremely high detection sensitivity.

• Low adsorption,preventing contamination of the detection system and workpiece.

2.Mass Spectrometry Analysis:The instrument's core component, the "mass spectrometer tube," ionizes inhaled gas molecules into ions. These ions are then separated in a magnetic field based on their mass-to-charge ratio. The instrument is specifically tuned to detect only helium ions (mass number 4). The signal strength is proportional to the helium concentration, allowing precise calculation of the leak rate.

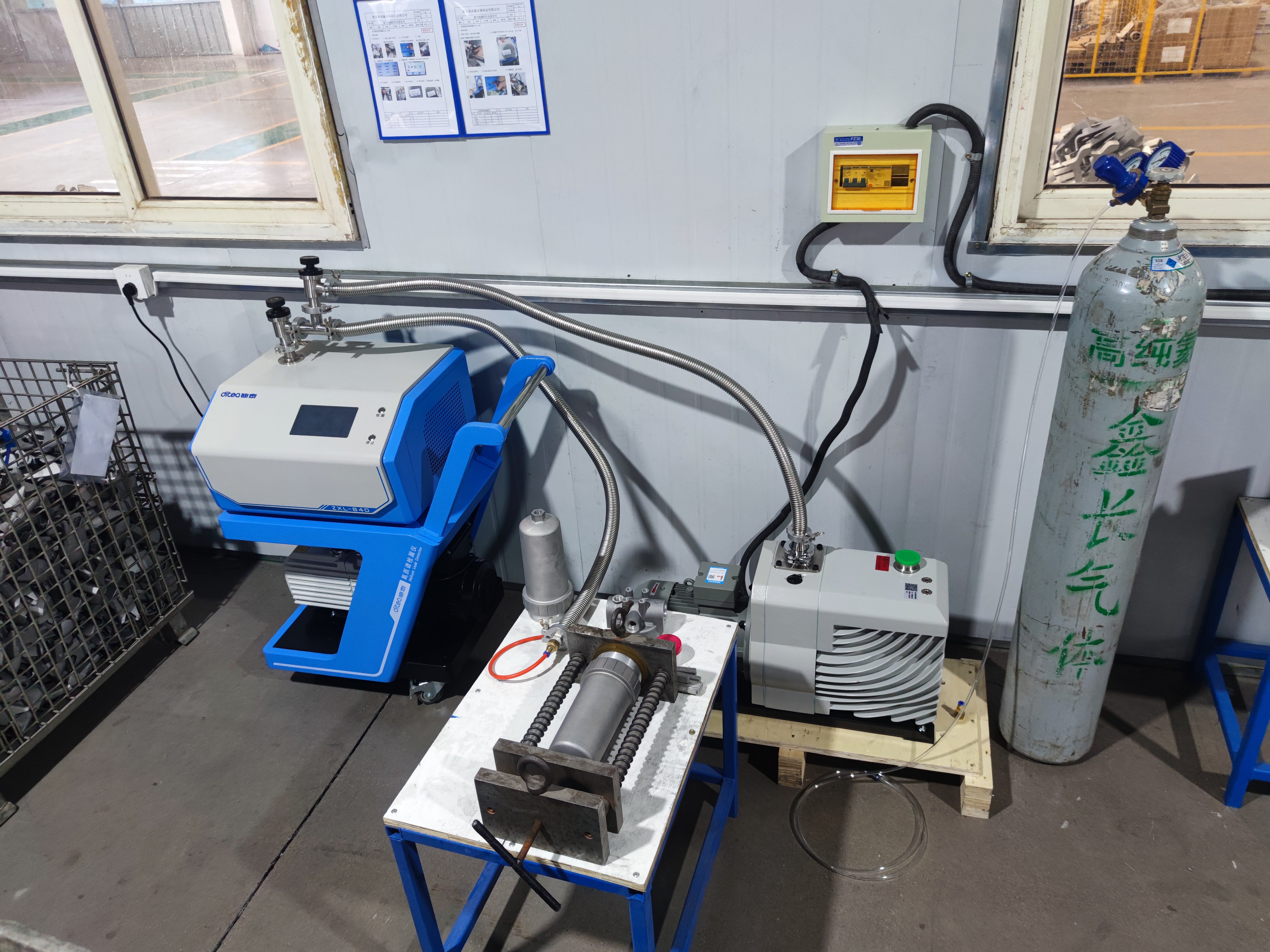

III. QSY’s Method For Helium Leak Inspection of Die-Castings

Sniffer Probe Mode

This is the most commonly used and flexible method on production lines.

• Process:

1.The interior of the die casting is filled with helium (or a helium-nitrogen mixture) at a certain pressure.

2.The workpiece is left to stand for a period (pressurization time) to allow helium sufficient time to seep out from any leaks.

3.An operator uses a handheld "sniffer" probe, moving it slowly over the external surface of the workpiece (1-3 mm from the surface).

4.If a leak point exists, the escaping helium is drawn into the probe and sent to the detector, which alarms and locates the leak.

• Advantages:

1.No vacuum chamber is needed, making it suitable for large, complex workpieces.

2.Allows direct and rapid localization of leak points, facilitating rework.

3.Easily integrated into automated production lines.

• Disadvantages:

1.Lower sensitivity compared to the vacuum mode; susceptible to interference from air currents and environmental background levels.

2.Higher helium consumption.

IV. Key Considerations for Implementing Helium Leak Testing

1.Component Cleanliness and Dryness:Oil stains, moisture, or powder on the surface of the die casting can block minute leak paths, leading to false results. It is essential to ensure that the workpiece is thoroughly clean and dry before testing.

2.Tooling and Fixturing:Customized sealing fixtures are required for the workpiece. These must ensure that during pressurization or evacuation, the workpiece itself is the only potential leak source, and the fixture interfaces must be absolutely leak-tight.

3.Helium Background:The presence of helium in the environment (e.g., from balloon leaks) can interfere with test results. Testing should be conducted in a relatively clean environment.

4.Cycle Time and Cost: A balance must be struck between detection sensitivity, production cycle time, helium consumption, and equipment investment. Automated integration is key to improving efficiency and consistency.

5.Standard Setting:Scientific and rational pass/fail criteria for leak rates must be established based on the product's end-use requirements.

V. Summary

The helium leak detector (helium mass spectrometer leak detector) is the ultimate tool for ensuring the airtightness of high-quality die castings. Through its highly sensitive and quantitative detection capabilities, it can identify potential, minute casting defects, thereby eliminating quality issues related to leaks at the source. Although the initial investment is high, it is an indispensable and critical quality control technology for industries with extreme reliability and safety requirements, such as automotive, aerospace, and high-end refrigeration.
