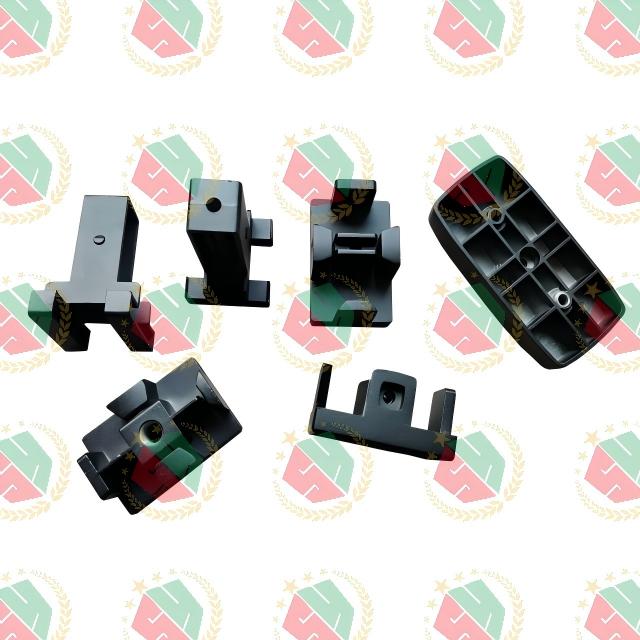

Selecting the wrong manufacturing partner leads to severe financial and operational consequences. High upfront tooling costs make switching vendors mid-production a nightmare. Procurement teams often face inconsistent part quality, specifically severe porosity issues that compromise structural integrity. Delayed First Article Inspection (FAI) approvals stall product launches and disrupt market entry. Hidden tooling maintenance fees destroy project budgets before mass production even begins. Poor communication during design changes causes massive production delays and misaligned production capacities.
You need a structured, evidence-based evaluation framework. This guide helps you audit potential vendors thoroughly on the shop floor. It shows you how to verify their technical capabilities and equipment tonnage. You will learn to assess their quality control systems and ensure long-term supply chain stability. Choosing the right partner mitigates risk and guarantees consistent production quality from the first shot to the millionth.
Early DFM Collaboration: The best partners provide Design for Manufacturability (DFM) feedback before cutting steel to optimize part geometry, reduce weight, and minimize tooling costs.
Tooling Ownership and Maintenance: Always secure explicit contractual rights to your molds and verify the manufacturer's in-house tooling maintenance capabilities to prevent production downtime.
Tonnage and Capacity Alignment: Match your part size and volume requirements to the manufacturer's specific machine tonnage and automation capabilities.
Integrated Quality Control: Prioritize vendors utilizing advanced defect mitigation (e.g., vacuum-assist casting, real-time shot monitoring) and rigorous non-destructive testing (X-ray, CT scanning).
Total Landed Cost Over Unit Price: Evaluate quotes based on total landed cost, factoring in secondary machining, surface finishing, logistics, and scrap rates, rather than just the raw piece price.
Expected annual volumes dictate mold steel quality and the required heat treatment processes. Standard H13 tool steel works well for medium production runs, typically yielding up to 100,000 shots for aluminum before heat checking occurs. Premium steel grades like Dievar or Orvar Supreme handle higher volumes and resist thermal fatigue much better. The manufacturer must scale production alongside your demand. Low-volume projects need flexible setups and quick die change systems to remain efficient. High-volume runs require dedicated, fully automated cells with robotic extraction and automatic ladling. Define your annual usage clearly before requesting quotes. This prevents mismatched capacity expectations and ensures the vendor allocates the correct machine time for your project. You must also specify the expected life of the product to align tooling investments with market longevity.
Match vendor specialization directly to your engineering needs. Thermal and structural demands vary drastically by alloy. Producing custom aluminum die casting parts requires specific thermal management within the die. Aluminum shrinks predictably but demands high injection pressures and aggressive cooling lines to prevent soldering. A380 aluminum is the industry standard, offering a great balance of casting ease, mechanical properties, and thermal conductivity. A356 provides higher strength and ductility but requires careful handling to prevent shrinkage.
The flow characteristics of zinc alloy die casting components demand entirely different gating strategies. Zinc allows for thinner walls, faster cycle times, and tighter as-cast tolerances. Zamak 3 is the most widely used zinc alloy, providing excellent castability and long-term dimensional stability. Zamak 5 adds copper for increased hardness and tensile strength. Ensure the facility has a proven track record with your chosen material. Ask to see their scrap rates and defect logs for similar alloys. A shop that primarily runs zinc will struggle with the thermal demands of an aluminum project.
Material selection dictates the required machinery on the shop floor. Cold chamber machines handle high-melting-point aluminum and magnesium alloys. The metal is melted in a separate furnace and ladled into a cold sleeve for each individual shot. This prevents the molten metal from destroying the machine's internal pumping mechanisms. High-speed hot chamber machines process zinc efficiently. The injection mechanism sits directly in the molten metal bath, allowing for rapid, continuous cycling. Verify the vendor operates the correct machine type and has sufficient backup equipment to prevent downtime during maintenance.
Feature | Cold Chamber Process | Hot Chamber Process |
|---|---|---|
Primary Materials | Aluminum, Brass, Magnesium | Zinc, Lead, Tin |
Melting Point | High (e.g., Aluminum at 660°C) | Low (e.g., Zinc at 419°C) |
Injection Mechanism | Separate melting furnace, ladled into sleeve | Submerged directly in molten metal bath |
Cycle Speed | Slower due to ladling process | Faster, highly automated continuous cycles |
Tool Life | Shorter (high thermal stress causes heat checking) | Longer (lower thermal stress preserves steel) |
Maintenance Requirements | Frequent sleeve and plunger tip replacement | Gooseneck and nozzle maintenance |
Document baseline as-cast tolerances immediately using NADCA standards. Identify critical dimensions requiring post-casting CNC machining. Die casting achieves excellent near-net shapes, but tight tolerances on bearing journals or sealing faces often require secondary operations. Establish clear expectations for these operations early in the design phase. Specify surface finish requirements, flatness callouts, and positional tolerances on your 2D drawings. When establishing datums for CNC machining, always use as-cast features that remain stable across the parting line. Avoid placing datums on ejector pin marks or moving slide surfaces. Clear documentation prevents miscommunication during the prototyping phase and ensures the vendor designs the casting with adequate machining stock.
Audit the facility's machine tonnage range carefully during your site visit. A capable die casting manufacturer offers machines ranging from 400T to 3000T or more. Tonnage determines the locking force applied to the mold halves. Larger parts require higher tonnage to prevent flash and maintain dimensional accuracy across the parting line. Multi-cavity molds also demand increased locking force due to the larger projected area. Calculate your required tonnage using the projected part area multiplied by the specific injection pressure, then add a 20% safety margin.
Look for automated work cells on the factory floor. Robotic ladling, automatic die spraying, and robotic extraction ensure cycle-to-cycle consistency. Automation reduces labor-induced variability in high pressure die casting services. It stabilizes the thermal cycle of the die, which is critical for maintaining part quality. Consistent die temperatures yield better dimensional stability, fewer surface defects, and longer tool life.
Evaluate the vendor's willingness to provide early DFM feedback. Competent engineers optimize draft angles, usually recommending 1 to 2 degrees minimum to ensure clean ejection. They adjust wall thickness for uniform cooling and add ribbing to improve structural integrity without adding unnecessary weight. Request rapid prototypes to validate designs before cutting steel. CNC machined parts from billet or 3D printed sand molds work well for form and fit testing.
Upfront simulation software is non-negotiable for complex geometries. Programs like MAGMASOFT or AnyCasting predict air entrapment, shrinkage porosity, and thermal imbalances. They identify these issues before the toolmaker cuts any steel. This eliminates costly trial-and-error during initial tool trials. Engineers use simulation data to optimize gating layouts, runner sizes, and venting locations. They analyze fill time, solidification time, and metal velocity at the gates. Proper simulation guarantees a robust manufacturing process and significantly reduces the time to market.
Check the in-house tool room capabilities thoroughly. Look for strict preventative maintenance schedules, including regular ultrasonic cleaning and stress relieving every 10,000 shots. Rapid repair setups minimize production downtime when a core pin breaks or a slide jams. Demand clear policies on guaranteed tool life and replacement costs. In-house tool maintenance ensures your molds stay in peak condition. Relying on external tool shops causes unnecessary delays and diffuses accountability.
Top-tier facilities manage alloy integrity rigorously. They utilize central melting furnaces and strict rotary degassing procedures to remove hydrogen from the melt. Segregation protocols prevent cross-contamination between different alloys. Mixing aluminum and zinc scrap ruins the mechanical properties of both materials. Ask to see their material handling workflows and ingot storage areas during your facility audit.
Assess their adoption of modern manufacturing technologies. Energy-efficient melting furnaces reduce operational overhead and carbon footprint. In-house scrap recycling programs improve sustainability metrics by reusing runners and biscuits. IoT-enabled real-time monitoring tracks metal chemistry and furnace temperatures continuously. This ensures consistent mechanical properties across production batches. Sustainable practices indicate a forward-thinking manufacturing partner committed to long-term operational excellence.
Verify Quality Management Systems thoroughly during your audit. Baseline ISO 9001 compliance shows basic organizational competence and documentation control. Automotive projects require strict IATF 16949 certification, which mandates advanced product quality planning (APQP) and failure mode and effects analysis (FMEA). Aerospace components demand AS9100 compliance for rigorous traceability. Match the vendor's certifications to your industry risk profile. Request their latest audit reports and corrective action logs to verify active, ongoing compliance rather than just a plaque on the wall.
Reliable vendors possess mandatory inspection equipment in-house. Coordinate Measuring Machines (CMM) verify dimensional accuracy against 3D CAD models. Optical comparators check complex profiles and small radii. X-ray and CT scanning detect internal voids and shrinkage. They identify hidden porosity that weakens structural components and causes leaks in fluid-handling parts. Relying solely on visual inspection invites catastrophic field failures.
Verify incoming ingot chemistry using optical emission spectroscopy.
Perform real-time X-ray inspection on the first 50 shots of a new production run.
Execute CMM dimensional layouts on critical features every shift.
Conduct leak testing under water or using pressure decay methods for sealed components.
Perform destructive tensile testing on sample bars cast alongside the main production parts.
Inspect surface finish using profilometers before and after secondary machining.
Manufacturers must address common casting defects proactively. Vacuum die casting minimizes trapped air inside the cavity by evacuating the mold just before injection. Squeeze pins reduce shrinkage porosity in thick sections by applying localized pressure during solidification. Optimized thermal management ensures uniform cooling rates. Conformal cooling channels inside the mold control temperature precisely in hard-to-reach areas. Ask the vendor how they handle cold shuts, blistering, and soldering. Their answers reveal their true engineering depth and shop-floor experience.
Defect Type | Root Cause | Mitigation Strategy |
|---|---|---|
Porosity (Gas) | Trapped air during high-speed injection | Implement vacuum-assist casting and optimize venting |
Porosity (Shrinkage) | Uneven cooling in thick wall sections | Use squeeze pins and redesign for uniform wall thickness |
Cold Shuts | Metal cools before completely filling the cavity | Increase die temperature and adjust gate velocity |
Blistering | Trapped gas expanding during heat treatment | Improve degassing procedures and reduce plunger speed |
Soldering | Molten metal fusing to the die steel | Apply proper die release agents and increase cooling line flow |

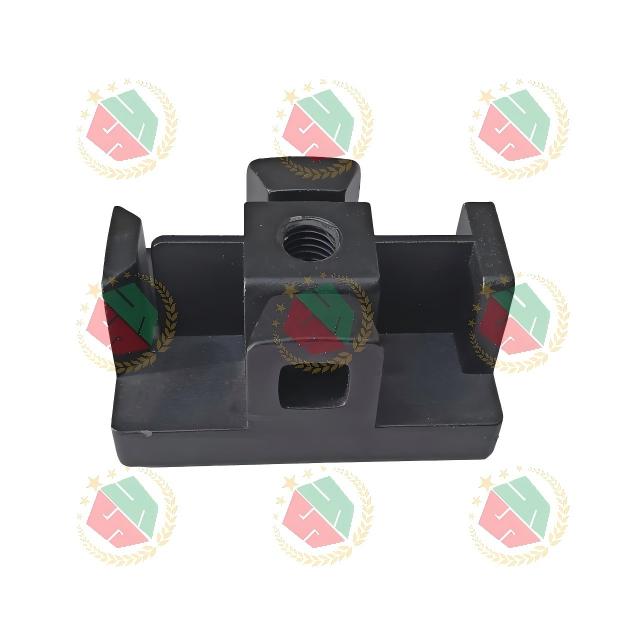

Keeping casting and machining under one roof reduces risk significantly. It provides single-source accountability for the final part. You avoid finger-pointing between the caster and the machine shop when a dimension falls out of tolerance. Evaluate their multi-axis CNC capabilities. Five-axis milling centers achieve tight tolerances on complex geometries without requiring multiple setups. Verify their fixture design process and machining inspection protocols. Proper fixturing prevents distortion of thin-walled castings during heavy milling operations. Apply Geometric Dimensioning and Tolerancing (GD&T) principles to define positional accuracy for tapped holes and bearing bores.
Evaluate surface finishing services carefully. Common options include shot blasting, sandblasting, and vibratory deburring to remove flash and sharp edges. Protective coatings include powder coating, anodizing, chromate conversion, or electroplating. Proper surface preparation prevents blistering and adhesion failures. Ask about their pre-treatment washing lines and chemical etching processes. Poor cleaning leaves die release agents on the part. This ruins paint adhesion instantly and leads to field peeling.
Vendors offering sub-assembly provide a massive strategic advantage. Hardware insertion, such as pressing in helicoils, dowel pins, or threaded inserts, simplifies your final assembly line. Custom packaging protects fragile fins and machined surfaces during transit. Consolidating these steps reduces logistics complexity. It shortens overall lead times significantly. You manage fewer purchase orders, track fewer shipments, and reduce the risk of damage caused by moving parts between multiple subcontractors.
Break down tooling procurement financial models carefully. Paying upfront ensures immediate mold ownership. You control the tool and can move it to another facility if quality drops. Amortizing costs into the piece price lowers initial capital expenditure, which helps cash flow on new product launches. However, amortization often creates strict vendor lock-in. You cannot move the tool until the contract volume is met or the remaining balance is paid in a lump sum. Calculate the long-term financial impact of both options before signing the tooling agreement.
Assess geographical sourcing realistically. Offshore manufacturing offers lower labor and tooling fabrication costs. Yet, it introduces extended supply chains, container shipping delays, and port congestion risks. Intellectual property theft remains a valid concern for proprietary designs. Tariffs, import duties, and communication barriers complicate offshore production further. Domestic sourcing offers faster communication, easier facility audits, and rapid prototyping turnaround. Weigh these logistical risks against the potential piece-price savings.
Evaluate responsiveness and organizational structure during the quoting phase. A reliable partner provides a dedicated project manager who acts as your single point of contact. Expect transparent reporting on production milestones and tooling progress via Gantt charts. They need a streamlined Engineering Change Notice (ECN) process. Design changes happen frequently during the transition from prototype to production. The vendor must implement these changes without excessive delays, administrative friction, or exorbitant rework fees.
Follow strict FAI protocols before approving mass production. Audit the initial sample runs meticulously against your 2D drawings. Verify material certifications from the ingot supplier to ensure the chemistry matches the specification. Ensure the manufacturer's process capability index (Cpk) meets production standards. A Cpk above 1.33 indicates a stable, capable process with minimal variation. Do not sign off on production until all FAI dimensions pass and the vendor submits a complete Production Part Approval Process (PPAP) package.
Dimensional layout report covering 100% of drawing callouts.
Material chemistry certifications from the metal supplier.
X-ray reports confirming acceptable porosity levels.
Process flow diagrams and control plans.
Gauge Repeatability and Reproducibility (GR&R) studies.
Finalize your 3D CAD models and 2D drawings, ensuring all critical tolerances, datum structures, and surface finish requirements are clearly marked.
Compile a comprehensive Request for Quote (RFQ) detailing expected annual usage, specific alloy requirements, and all necessary secondary machining operations.
Request a detailed capability presentation, equipment list, and sample parts from your shortlisted vendors to verify their production quality.
Schedule an on-site facility audit to inspect their in-house tool room, automated casting cells, and quality control laboratories.
A: Tooling fabrication generally takes four to eight weeks. Complex molds or high-cavity tools require more time. First Article Inspection (FAI) adds another one to two weeks. Always build buffer time into your project schedule for potential tool modifications after the initial sample run.
A: You own the mold once you pay the tooling invoice in full. However, you must secure explicit contractual rights. Ensure your purchase agreement clearly states tooling ownership, transferability, and the manufacturer's obligation to maintain the mold during its lifecycle.
A: Aluminum offers a high strength-to-weight ratio and excellent thermal conductivity, suiting automotive and aerospace applications. Zinc provides superior castability, tighter tolerances, and better finishing options. Choose zinc for intricate components requiring high precision and aesthetic appeal.
A: Hot chamber machines submerge the injection mechanism in molten metal, processing low-melting-point alloys like zinc rapidly. Cold chamber machines ladle molten metal into a cold sleeve for each shot. They handle high-melting-point alloys like aluminum to prevent internal equipment damage.
A: Porosity stems from trapped gas or metal shrinkage during solidification. Manufacturers prevent it using vacuum-assist technology to evacuate air from the die. They also apply squeeze pins to compress the metal and utilize mold flow simulation to optimize gating and venting designs.
A: Tool life depends on the alloy and mold steel quality. Aluminum molds typically last 80,000 to 100,000 shots due to high thermal stress. Zinc molds experience lower temperatures and can exceed 500,000 shots. Regular preventative maintenance extends these lifespans significantly.
